Drilling series
> >

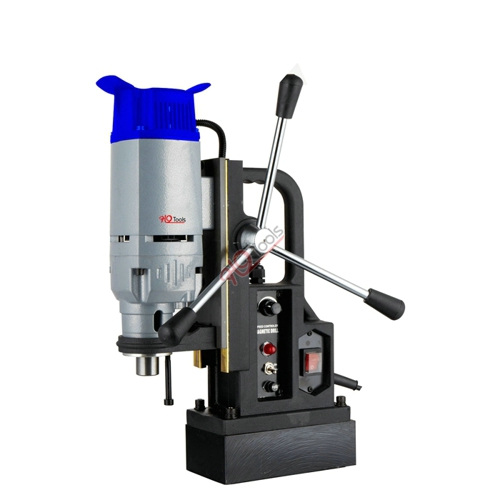

HY5131
HY5131
Contact UsRequest a quote
Share This Product:
  • Specifications

Model

HY5131

Max.twist drill bit

49mm

Voltage

380V

Rated frequency

50HZ

Rated input power

1900W

No-load speed

125r/min

Max attraction

>19000N

Max travel

260mm

Min.steel plate thickness

10mm

Rotation angle

45°both left and rig

Level displacement

20mm

Spindle inner hole taper

MT4

N.W

47kg

Number Picture

Chuck guard

Front  switch

Keyless drill chuck

Key type drill chuck

Vice

Laser
